MACD_V

#MACD #volatility #ATR #normalized

MACD-V takes the MACD line and normalizes it by volatility (using ATR). The result is a MACD reading that accounts for how volatile the stock is. A large MACD gap in a low-volatility stock is significant. The same gap in a high-volatility stock is noise. MACD-V sees the difference.

Default parameters: Standard MACD periods + ATR period

How to read it:

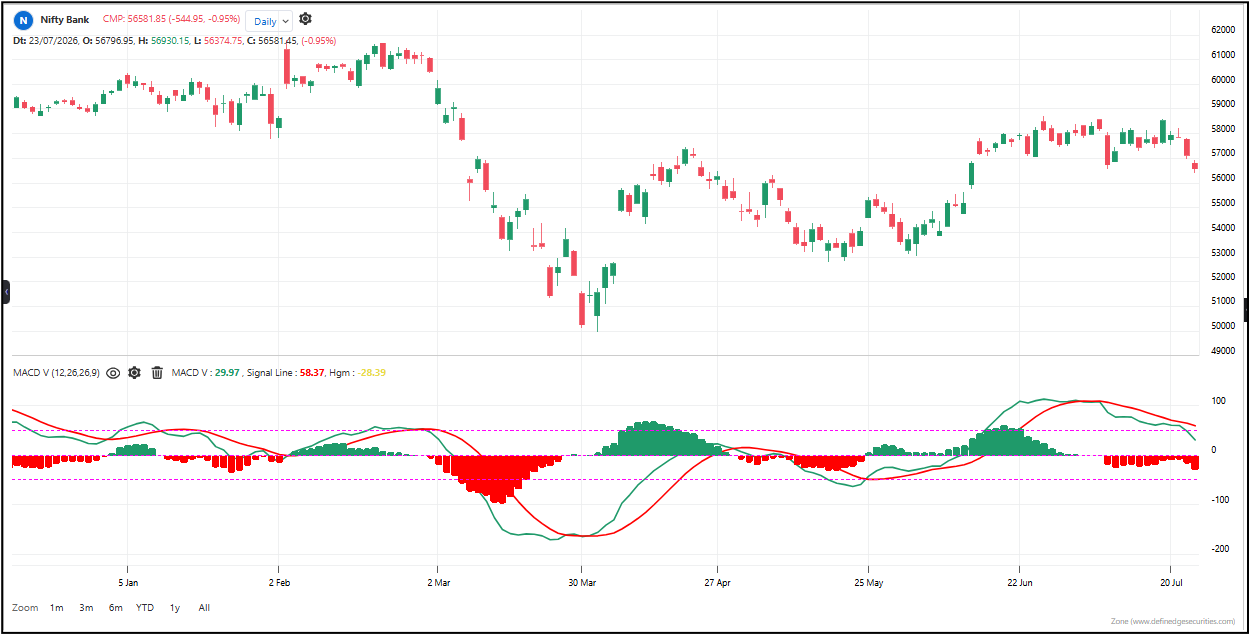

A line with a signal line, just like MACD. But the scale is volatility-adjusted. When MACD-V (Green Line) is high, the momentum gap is large relative to the stock’s normal volatility — the move is significant. When MACD-V is low, the momentum gap is small relative to volatility — the move is just normal noise. The signal line crossover works the same way as standard MACD.

Useful readings:

– MACD-V rising — the momentum gap is growing faster than volatility. The trend is genuine.

– MACD-V falling — the momentum gap is shrinking relative to volatility. The trend may be losing meaning.

– MACD-V crosses above signal line — volatility-adjusted momentum is turning bullish.

– MACD-V crosses below signal line — volatility-adjusted momentum is turning bearish.

– Extreme high reading — the momentum gap is enormous relative to normal volatility. Very strong trend, but possibly overextended.

– Reading near zero — the momentum gap is tiny relative to volatility. No meaningful trend.

Use cases:

– Filtering false signals: In a volatile stock, regular MACD throws constant crossovers because normal price swings create big MACD gaps. MACD-V filters those out — only significant gaps relative to volatility trigger signals.

– Trend quality check: A rising MACD-V means the trend is backed by momentum that exceeds normal volatility. A flat or falling MACD-V means the trend is just normal noise.

– Cross-volatility comparison: Compare MACD-V across stocks with different volatility profiles. A high reading means the same thing whether the stock is calm or wild.

– Same rules as MACD: The system builder conditions are identical to standard MACD — crossovers, divergence, histogram. Just volatility-aware.

Objective rules:

– Go long when MACD-V crosses above its signal line.

– Go short when MACD-V crosses below its signal line.

– Exit when the cross reverses.

– Avoid trading when MACD-V is near zero — the momentum gap is just noise relative to volatility.

– Use divergence (price vs MACD-V) as an early exit warning.

What makes it unique: Regular MACD treats every stock the same. MACD-V knows that a 10-point MACD gap means something different in a calm stock versus a wild one. By dividing MACD by volatility, it gives you a fair comparison across stocks with different personality types. It answers: “Is this momentum real, or just the stock being volatile?”

The indicator table value in TradePoint & RZone also provides you with a list of all values of this indicator for any group of stocks. This will allow you to compare the readings of this indicator across different stocks.

This indicator is also available in the System Builder of RZone & TradePoint for all charting methods. Using the system builder, you can develop various strategies based on the different conditions already present in this indicator. Additionally, it can be used with other indicators or price patterns to develop effective trading strategies. For any group of stocks and market segments, you can scan and backtest stocks based on those strategies.

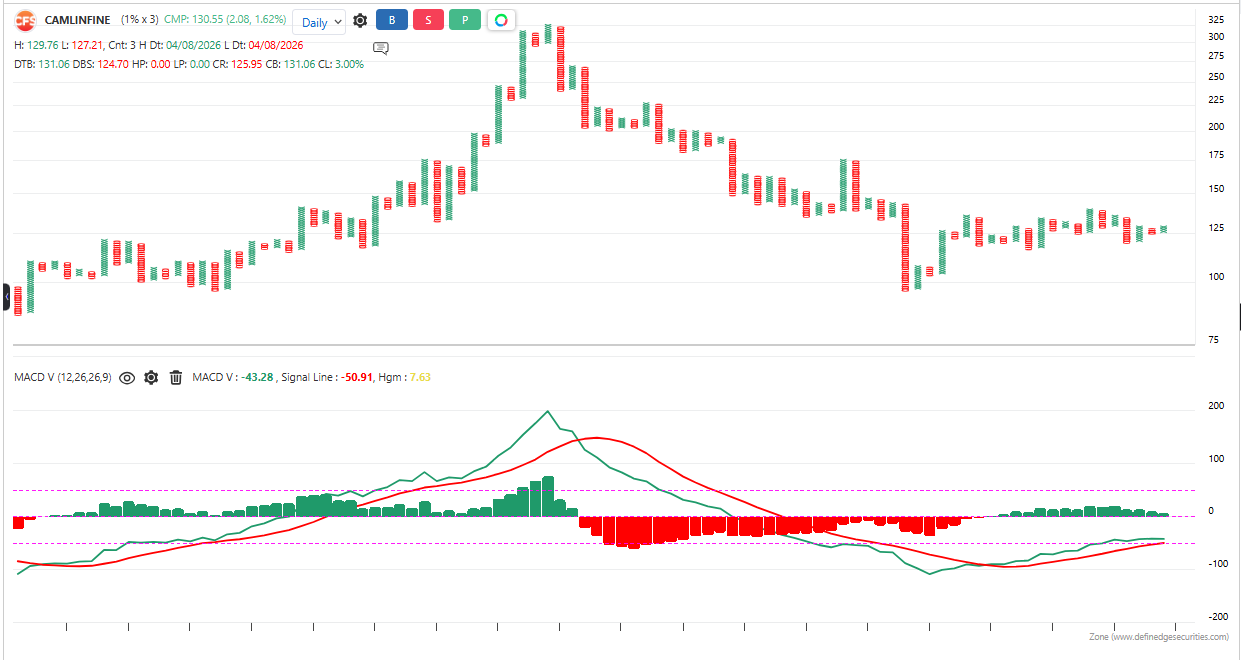

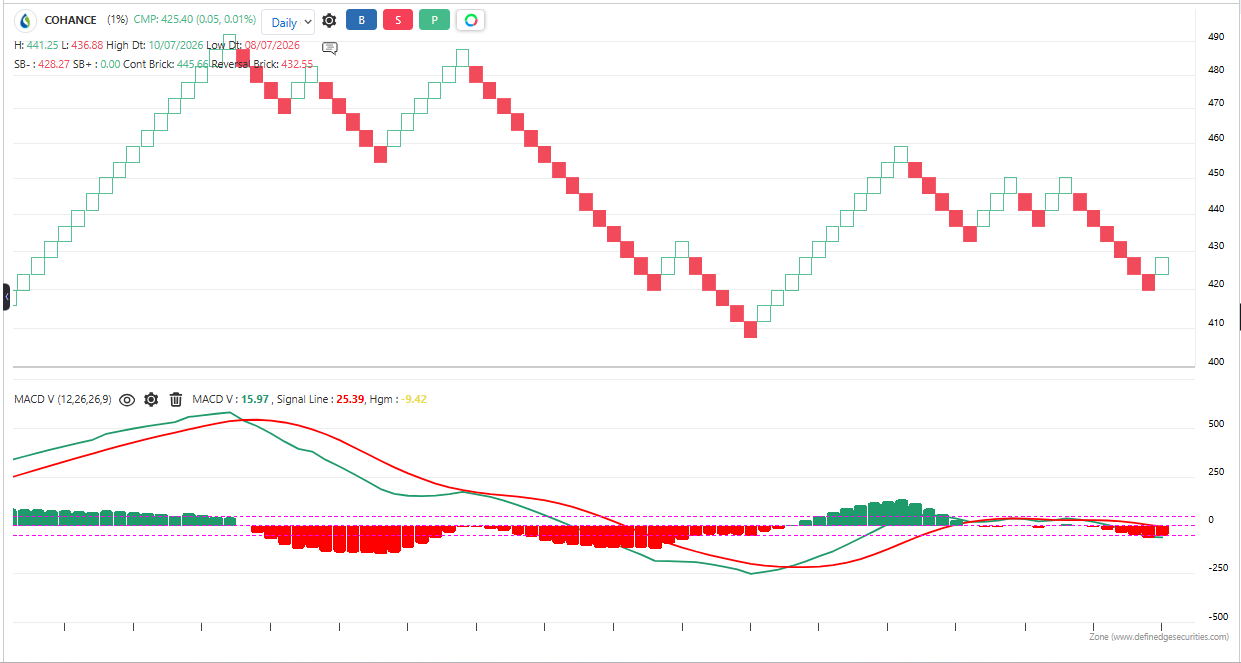

The indicator is applicable to all types of charting. Calculated based on the number of columns on P&F charts, bricks on Renko charts, lines on Line-break charts, candles on Heikin ashi charts, and lines on Kagi charts. While the formula and reading of the indicators remain the same, they become more dynamic on these charts.
